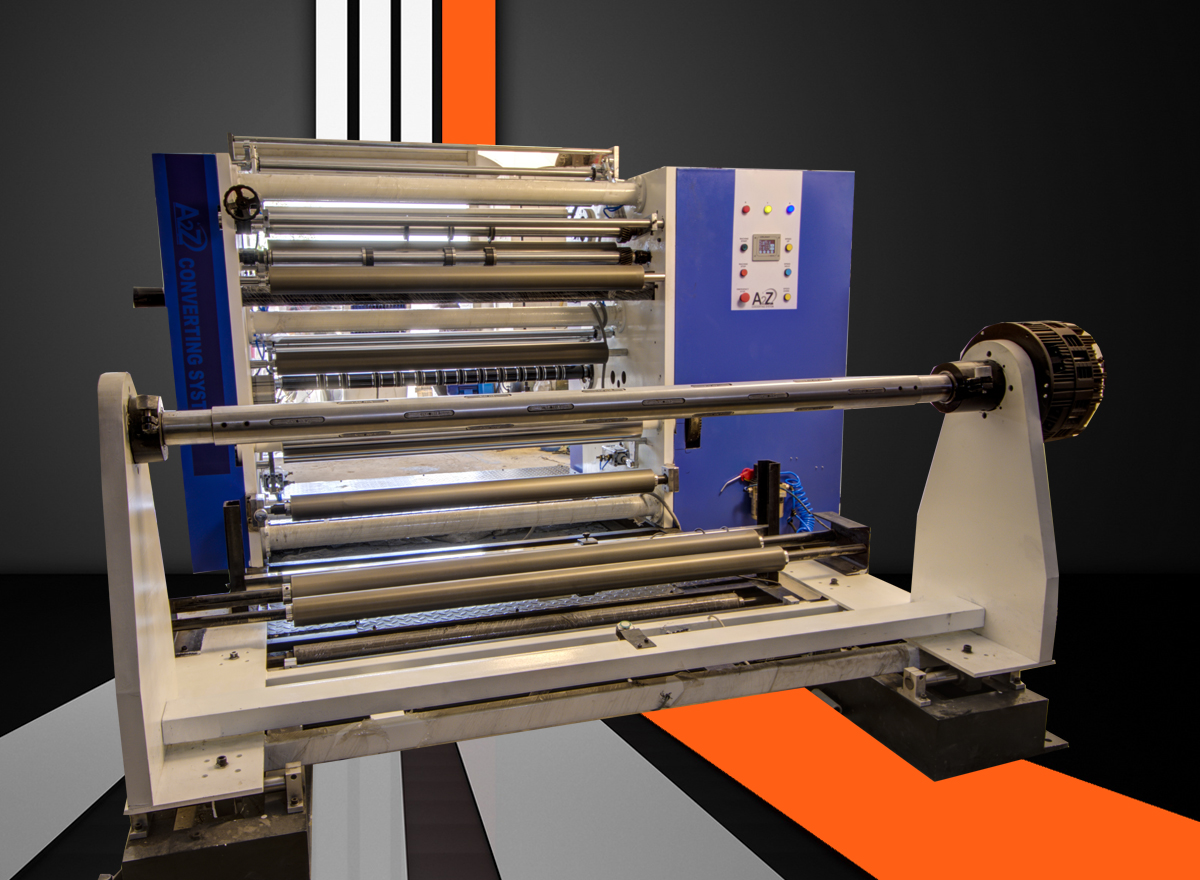

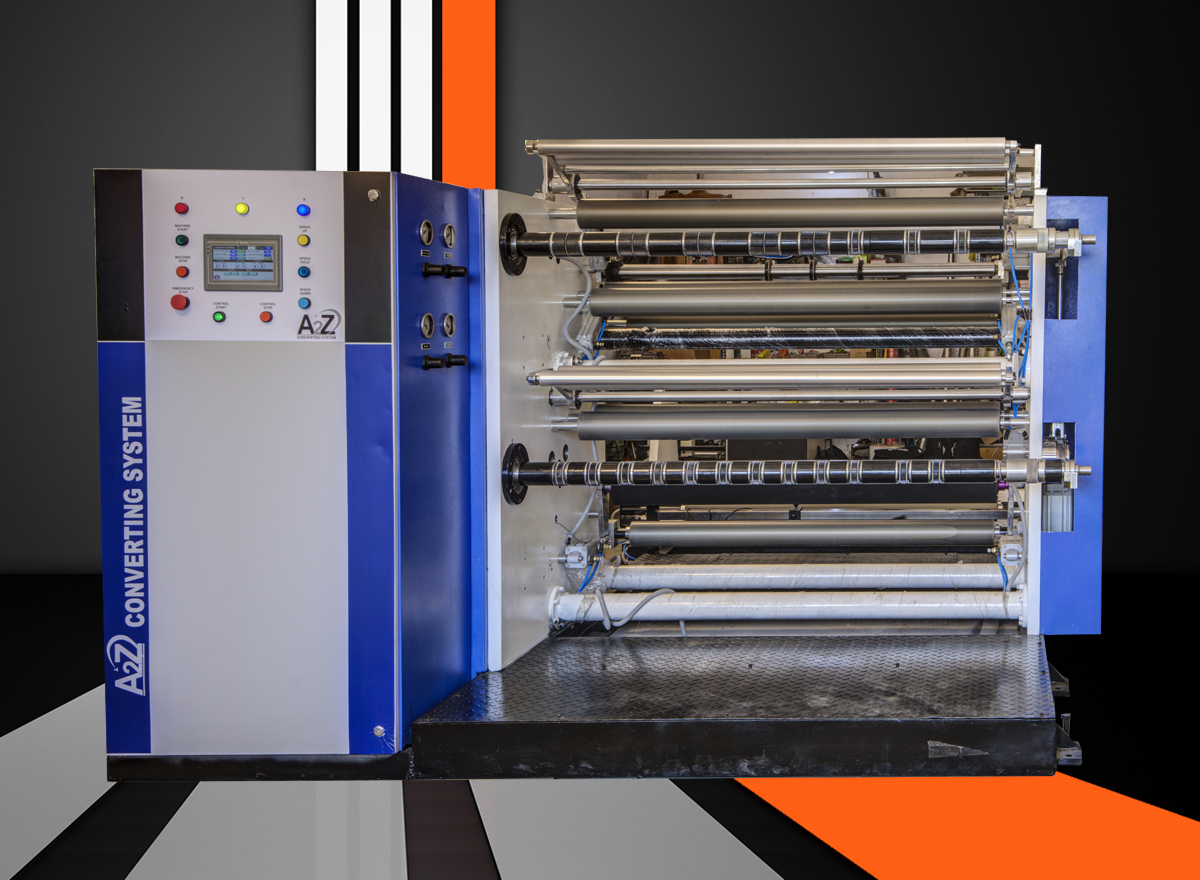

Cantilever Slitter Rewinder Machine

Machine Type	Cantilever Slitter Rewinder Machine
Machine Maximum Speed	350 Mpm, 450 Mpm
Maximum Web Width	1000 mm,1200 mm, 1500 mm, 2000 mm
Minimum Slitting Width	50 mm
Unwind Reel Diameter	800 mm ,1000 mm
Rewind Reel Diameter	800 mm ,1000 mm
Unwind Tension Control	Auto Tension with Powder Break
Machine Wall Thickness	MS Plate 40 mm, 45 mm, 50 mm
Machine Operation	Remote Panel / 7 Inch Color Touch Panel
Unwind Shaft	Mechanical Shaft / Air Shaft
Rewind Shaft	Differential Shaft
Rewinder Arm	Pneumatic Operated Rewinder Arm
Changeover Operation	Semi-Automatic Operated By HMI
Control Panel	2 Drive / 3 Drive System Control Panel - Siemens
Machine Paint	PU Coated Paint
