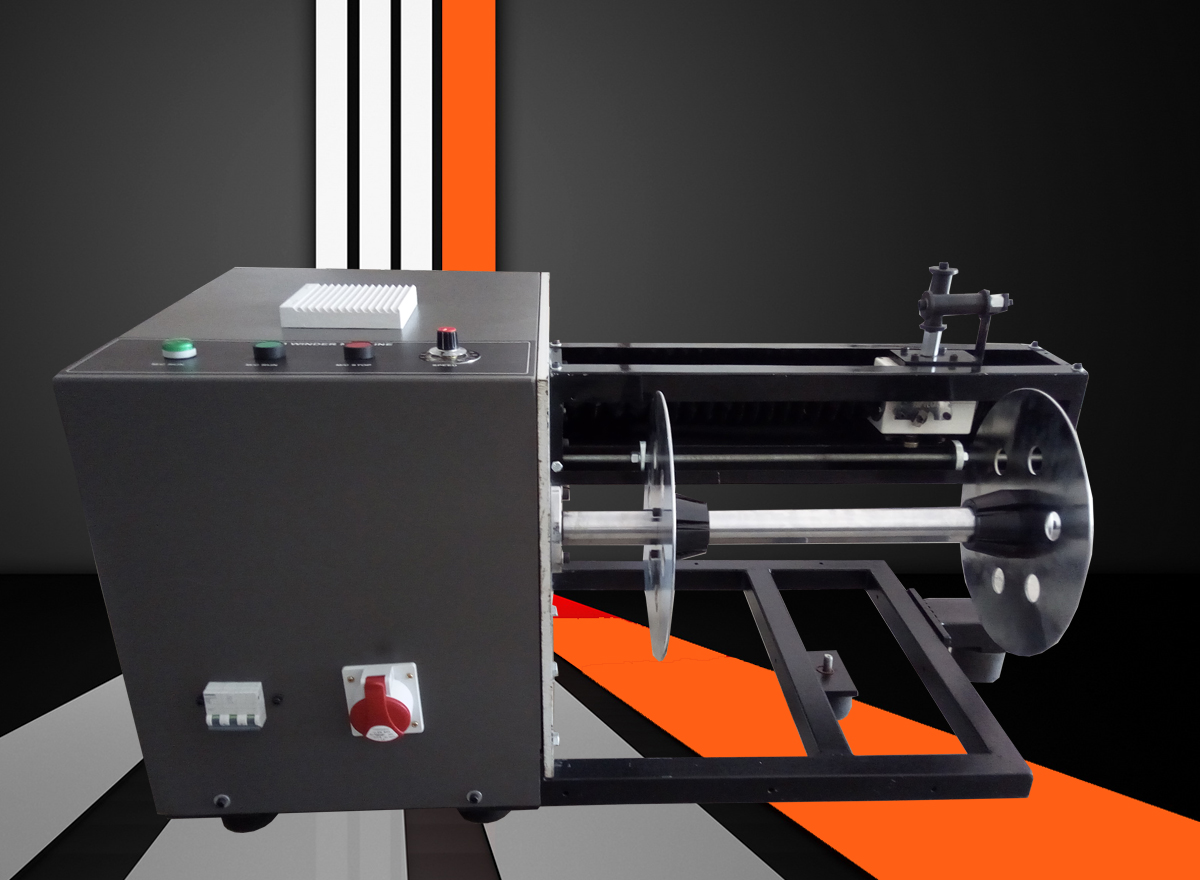

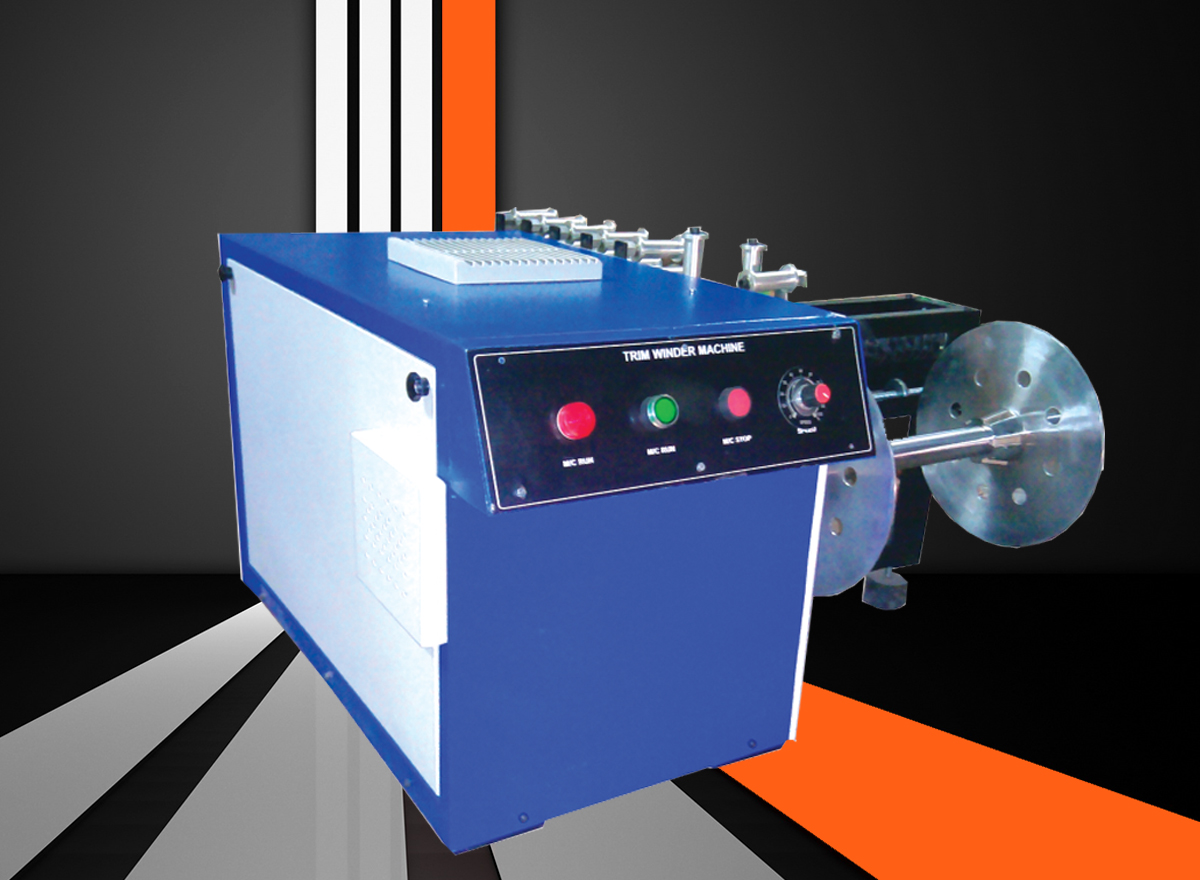

Trim Winder Machine

Machine Type	Trim Winder Machine
Machine Maximum Speed	350 Mpm & 500 Mpm
Winding Direction	Forward
Maximum Trim Width	50 mm
Minimum Trim Width	5 mm
Rewind Reel Diameter	300 mm
Rewind Reel Width	350 mm
Rewind Tension Control	Dancer Base Tension Control
Machine Wall Thickness	MS Plate 10 mm,
Cam Travers Unit	A2Z Make
Rewind Shaft	Mechanical Shaft
Linier Sensor	LVDT / Ultrasonic Sensor
Induction Motor	1.25 Hp 3 Phase 415 Vac
Ac Drive	2 Hp Ac Drive - Schneider
Control Panel	1 Drive System Control Panel - Schneider
Machine Paint	PU Coated Paint
